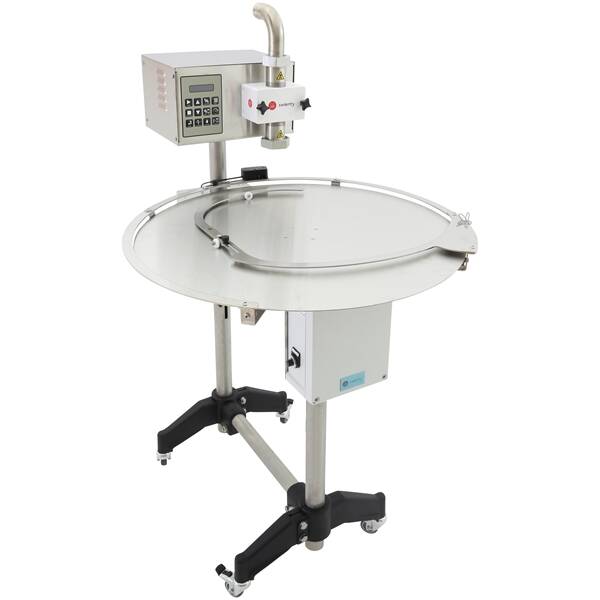

Filling station ø70 turntable & DANA api MATIC 1000

Complete Fillingstation Ø70

The "budget" filling station, where the DANA api MATIC 1000 filling machine and an automatic filling table are combined into one unit.

The DANA api MATIC 1000 is a filling machine with a gear pump. A strong low voltage DC motor drives the gear pump with the help of a helical gear box. The motor is controlled by computer-based electronics, which also ensures a perfect anti-drip function. The filling machine has 20 filling programs with settings for weight, calibration factor and other filling parameters. The machine works precisely and is easy to program for different substances. As a pump, the machine works both ways and can be set to different speeds. All parts that come into contact with the substance are made from food grade plastic or stainless steel and are easy to take apart and to clean.


Empty jars are placed on the table top and then transported automatically through a rail to a wire switch. Once the jar hits the wire switch, the table stops and the filling machine starts filling the jar. Once the jar is filled the table starts turning again until the next jar arrives  the wire switch. The rail is very easy to adjust to different jars sizes.

In this unit, the filling machine can be adjusted both horizontally and vertically to accommodate various jar sizes.

This product needs to be assembled before use.
An assembly manual is included, and assembly typically takes about 30 minutes.


Included fitting:
Foot pedal
Counterflow valve
Dosing syringe 0-60 ml
Nut for BS fitting 1½"
Complete cut-off-cross ø20
Legs
1½" / 38mm hose
1½" bent BS fitting
1½" Hoseclamp

With the machine you recieve an included spare parts set containing:
2 x Cross-cut Ø20
2 x Black rubber diaphragm
2 x Gasket BS 1½
2 x Handmountable nuts for pumphead
2 x O-ring 37x2 NBR 70
1 x O-ring 82x2 NBR 70
